4W-B55FT5U AQUOS BOARD® Collaboration Display
From the boardroom to the classroom, Sharp's 4W-B series AQUOS BOARD® collaboration displays add interoperability and collaboration to any environment. The Sharp 4W-B55FT5U - 55" Class AQUOS BOARD® collaboration display enables collaboration and communication in the workplace, classroom and virtually anywhere through precise 20-point multi-touch functionality and versatile connectivity. A powerful RS-232C and LAN command set facilitates flexible wireless remote control from connected devices. Wireless screen casting** and an HTML5 browser allow for viewing various types of content onto the large format display.
*Screen image simulated.
**Windows and Android OS are supported.
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 55" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 x 480, 720 x 400, 800 x 600, 1024 x768, 1360 x 768, 1280 x 1024, 1400 x 1050, 1280 x 720p, 1920 x 1080, 1920 x 1080i, 1920 x 1080p, 3840 x 2160, 3840 x 2160p, 640 x 480p, 720 x 480p, 720 x 576p, 720(1440) x 480i, 720(1440) x 576i |
| Module Resolution | 3840 x 2160 |
| Pixel Pitch | 0.315 mm |
| Pixels Per Inch | 81 PPI |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 270 cd/m2 |
| Contrast Ratio (typical) | 1300:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Refresh Rate | 60Hz |
| Active Screen Area | 48.5" x 28.2 / 1,232 x 623 |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
4W-B65FT5U AQUOS BOARD® Collaboration Display
From the boardroom to the classroom, Sharp's 4W-B series AQUOS BOARD® collaboration displays add interoperability and collaboration to any environment. The Sharp 4W-B65FT5U - 65" Class AQUOS BOARD® collaboration display enables collaboration and communication in the workplace, classroom and virtually anywhere through precise 20-point multi-touch functionality and versatile connectivity. A powerful RS-232C and LAN command set facilitates flexible wireless remote control from connected devices. Wireless screen casting** and an HTML5 browser allow for viewing various types of content onto the large format display.
*Screen image simulated.
**Windows and Android OS are supported.
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 65" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 x 480, 720 x 400, 800 x 600, 1024 x768, 1360 x 768, 1280 x 1024, 1400 x 1050, 1280 x 720p, 1920 x 1080, 1920 x 1080i, 1920 x 1080p, 3840 x 2160, 3840 x 2160p, 640 x 480p, 720 x 480p, 720 x 576p, 720(1440) x 480i, 720(1440) x 576i |
| Module Resolution | 3840 x 2160 |
| Pixel Pitch | 0.372 mm |
| Pixels Per Inch | 68 PPI |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 300 cd/m2 |
| Contrast Ratio (typical) | 1300:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Refresh Rate | 60Hz |
| Active Screen Area | 57.13" x 33.07" / 1,451 x 840 |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
4W-B75FT5U AQUOS BOARD® Collaboration Display
From the boardroom to the classroom, Sharp's 4W-B series AQUOS BOARD® collaboration displays add interoperability and collaboration to any environment. The Sharp 4W-B75FT5U - 75" Class AQUOS BOARD® collaboration display enables collaboration and communication in the workplace, classroom and virtually anywhere through precise 20-point multi-touch functionality and versatile connectivity. A powerful RS-232C and LAN command set facilitates flexible wireless remote control from connected devices. Wireless screen casting** and an HTML5 browser allow for viewing various types of content onto the large format display.
*Screen image simulated.
**Windows and Android OS are supported.
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 75" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 x 480, 720 x 400, 800 x 600, 1024 x768, 1360 x 768, 1280 x 1024, 1400 x 1050, 1280 x 720p, 1920 x 1080, 1920 x 1080i, 1920 x 1080p, 3840 x 2160, 3840 x 2160p, 640 x 480p, 720 x 480p, 720 x 576p, 720(1440) x 480i, 720(1440) x 576i |
| Module Resolution | 3840 x 2160 |
| Pixel Pitch | 0.43 mm |
| Pixels Per Inch | 59 PPI |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Refresh Rate | 60Hz |
| Active Screen Area | 65.91" x 37.91" / 1,674 x 963 |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
4W-B86FT5U AQUOS BOARD®Collaboration Display
From the boardroom to the classroom, Sharp’s 4W-B series AQUOS BOARD® collaboration displays add interoperability and collaboration to any environment. The Sharp 4W-B86FT5U - 86" Class AQUOS BOARD® collaboration display enables collaboration and communication in the workplace, classroom and virtually anywhere through precise 20-point multi-touch functionality and versatile connectivity. A powerful RS-232C and LAN command set facilitates flexible wireless remote control from connected devices. Wireless screen casting* and an HTML5 browser allow for viewing various types of content onto the large format display.
*Screen image simulated.
**Windows and Android OS are supported.
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 86" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 x 480, 720 x 400, 800 x 600, 1024 x768, 1360 x 768, 1280 x 1024, 1400 x 1050, 1280 x 720p, 1920 x 1080, 1920 x 1080i, 1920 x 1080p, 3840 x 2160, 3840 x 2160p, 640 x 480p, 720 x 480p, 720 x 576p, 720(1440) x 480i, 720(1440) x 576i |
| Module Resolution | 3840 x 2160 |
| Pixel Pitch | 0.49 mm |
| Pixels Per Inch | 51 PPI |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Refresh Rate | 60Hz |
| Active Screen Area | 75.30" x 42.40" / 1913 x 1077 |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
PN-L652B AQUOS BOARD® Collaboration Display
The SHARP PN-L652B AQUOS BOARD® collaboration display combines genuine “4K reading and writing” and an intuitive “Pen-on-Paper” user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-L652B AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
All-in-one unified communication soundbar incl. speaker, microphone and camera
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 65" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Pixel Pitch | 0.372 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 4000:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 6.5 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 56.25" x 31.63" / 1,428.5 x 803.5 mm |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
PN-L752B AQUOS BOARD® Collaboration Display
The SHARP PN-L752B AQUOS BOARD® collaboration display combines genuine "4K reading and writing" and an intuitive "Pen-on-Paper" user experience with Zero Bonding and Sharp's PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-L752B AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
All-in-one unified communication soundbar incl. speaker, microphone and camera
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 75" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Pixel Pitch | 0.42975 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 5000:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 8.5 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 64.94" x 36.56" / 1,650.2 x 928.3 mm |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
PN-L862B AQUOS BOARD® Collaboration Display
The SHARP PN-L862B AQUOS BOARD® collaboration display combines genuine "4K reading and writing" and an intuitive "Pen-on-Paper" user experience with Zero Bonding and Sharp's PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-L862B AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
All-in-one unified communication soundbar incl. speaker, microphone and camera
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 86" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Pixel Pitch | 0.42975 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 74.63" x 41.94" / 1,895 x 1,066 mm |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
PN-LA652 AQUOS BOARD® Collaboration Display
Bringing advanced professional functionality to enterprise users, the Sharp PN-LA series ensures compliance with the highest IT security standards while providing maximum flexibility. A built-in SDM expansion slot includes a pre-installed Windows® 11 Pro PC featuring an Intel™ Core i5 Tiger Lake CPU. This expands the display's customizable capabilities, enabling safe and seamless integration into corporate IT systems. Users can also benefit from pre-installed functionalities such as the Sharp Meeting Launcher for quick access to favorite apps and VC platforms, FlatFrog Board collaborative whiteboarding software and AirServer™ mirroring software for wireless screen sharing.
All-in-one unified communication soundbar incl. speaker, microphone and camera
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 65" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Module Resolution | 3840x2160 |
| Pixel Pitch | 0.372 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 450 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 56.25" x 31.6" |
| Orientation | Landscape/Portrait(counterclockwise)/Face-up 0-20, 45 degrees |
| Displayable Colors | 1.07 billion |
PN-LA752 AQUOS BOARD® Collaboration Display
Bringing advanced professional functionality to enterprise users, the Sharp PN-LA series ensures compliance with the highest IT security standards while providing maximum flexibility. A built-in SDM expansion slot includes a pre-installed Windows® 11 Pro PC featuring an Intel™ Core i5 Tiger Lake CPU. This expands the display's customizable capabilities, enabling safe and seamless integration into corporate IT systems. Users can also benefit from pre-installed functionalities such as the Sharp Meeting Launcher for quick access to favorite apps and VC platforms, FlatFrog Board collaborative whiteboarding software and AirServer™ mirroring software for wireless screen sharing.
All-in-one unified communication soundbar incl. speaker, microphone and camera
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 75" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Module Resolution | 3840x2160 |
| Pixel Pitch | 0.43 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 500 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 64.9" x 36.6" |
| Orientation | Landscape/Portrait(counterclockwise)/Face-up 0-20, 45 degrees |
| Displayable Colors | 1.07 billion |
PN-LA862 AQUOS BOARD® Collaboration Display
Bringing advanced professional functionality to enterprise users, the Sharp PN-LA series ensures compliance with the highest IT security standards while providing maximum flexibility. A built-in SDM expansion slot includes a pre-installed Windows® 11 Pro PC featuring an Intel™ Core i5 Tiger Lake CPU. This expands the display's customizable capabilities, enabling safe and seamless integration into corporate IT systems. Users can also benefit from pre-installed functionalities such as the Sharp Meeting Launcher for quick access to favorite apps and VC platforms, FlatFrog Board collaborative whiteboarding software and AirServer™ mirroring software for wireless screen sharing.
All-in-one unified communication soundbar incl. speaker, microphone and camera
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 86" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Pixel Pitch | 0.42975 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 74.63" x 41.94" / 1,895 x 1,066 mm |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
PN-LC652 AQUOS BOARD® Collaboration Display
The SHARP PN-LC652 AQUOS BOARD® collaboration display combines genuine 4K Ultra-HD resolution and an intuitive "Pen-on-Paper" user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-LC652 AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
All-in-one unified communication soundbar incl. speaker, microphone and camera
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 65" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Module Resolution | 3840x2160 |
| Pixel Pitch | 0.372 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 450 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 6.5 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 56-1/4" x 31-5/8" |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
PN-LC752 AQUOS BOARD® Collaboration Display
The SHARP PN-LC752 AQUOS BOARD® collaboration display combines genuine 4K Ultra-HD resolution and an intuitive "Pen-on-Paper" user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-LC752 AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
All-in-one unified communication soundbar incl. speaker, microphone and camera
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 75" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Module Resolution | 3840x2160 |
| Pixel Pitch | 0.43 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 450 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 6.5 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 64-15/16" x 36-9/16" |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
PN-LC862 AQUOS BOARD® Collaboration Display
The SHARP PN-LC862 AQUOS BOARD® collaboration display combines genuine 4K Ultra-HD resolution and an intuitive "Pen-on-Paper" user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-LC862 AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
All-in-one unified communication soundbar incl. speaker, microphone and camera
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 86" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Module Resolution | 3840 x 2160 |
| Pixel Pitch | 0.494 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 450 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 6.5 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 74-5/8" x 41-15/16" |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
PN-LM431 AQUOS BOARD® Collaboration Display

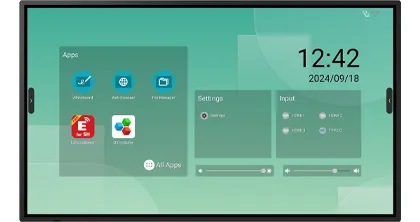

The SHARP PN-LM431 AQUOS BOARD® interactive displays combines genuine 4K Ultra-HD resolution and an intuitive “Pen-on-Paper” user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-LM series AQUOS BOARD interactive displays also feature an integrated controller with whiteboard, overlay and wireless functionality to help enhance your productivity.
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
All-in-one unified communication soundbar incl. speaker, microphone and camera
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 43" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Pixel Pitch | 0.2451 mm |
| Backlight Type | LED Direct-lit |
| Brightness (maximum) | 500 cd/m2 |
| Brightness (typical) | 450 cd/m2 |
| Contrast Ratio (typical/Dynamic) | 4000:1 |
| Viewing Angle | 178° right/left/up/down (contrast ratio ≥ 10) |
| Refresh Rate | 60Hz |
| Active Screen Area (W x H) | 37.1" x 20.8" |
| Orientation | Landscape/Portrait(counterclockwise)/Backward 0-45 degrees |
| Displayable Colors | 1.07 billion |
PN-LM551 AQUOS BOARD® Collaboration Display
The SHARP PN-LM551 AQUOS BOARD® interactive displays combines genuine 4K Ultra-HD resolution and an intuitive “Pen-on-Paper” user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-LM series AQUOS BOARD interactive displays also feature an integrated controller with whiteboard, overlay and wireless functionality to help enhance your productivity.
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
All-in-one unified communication soundbar incl. speaker, microphone and camera
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
| Panel Technology | TFT LCD |
|---|---|
| Viewable Image Size | 55" |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Pixel Pitch | 0.315 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 450 cd/m2 |
| Brightness (maximum) | 500 cd/m2 |
| Contrast Ratio (typical/Dynamic) | 5000:1 |
| Viewing Angle | 178° right/left/up/down (contrast ratio ≥ 10) |
| Refresh Rate | 60Hz |
| Active Screen Area (W x H) | 47.6" x 26.8" |
| Orientation | Landscape/Portrait(counterclockwise)/Backward 0-45 degrees |
| Displayable Colors | 1.07 billion |
Notifications
